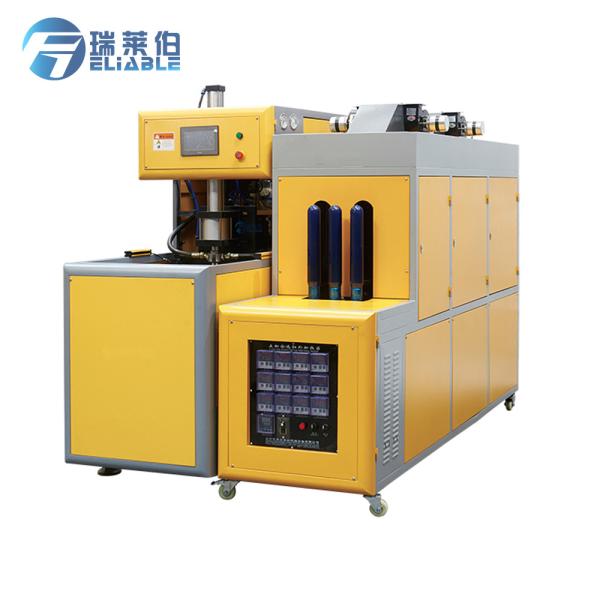

Blue / Yellow Pet Stretch Blow Forming Machine 2350 * 750 * 1900 Mm

Taizhou Huyang Reliable Machinery Co.,Ltd

Blue / Yellow Pet Stretch Blow Forming Machine 2350 * 750 * 1900 Mm

  • 1
  • 2
  • 3

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Reliable Blow Molding Machine

Model Number : RM-5gallon Blow Molding Machine

Certification : CE ISO9001 SGS

Supply Ability : 30 Set/Sets per Month Newest Stretch 5 Gallon Injection Blow Molding Machine Price

Packaging Details : Newest Stretch 5 Gallon Injection Blow Molding Machine Price wooden case

MOQ : 1 Set/Sets

Price : Negotiable

Condition : New

Application : Bottle

Plastic Processed : PET

Blow Moulding Type : Stretch Blow Moulding

Automatic : Semi Automatic

Voltage : 220V/380V

Power(W) : 39kw

Dimension(L*W*H) : 2350*750*1900mm

Weight : 1500kg

Product name : 2017 New Stretch 5 Gallon Preform Injection Blow Molding Machine Price

Color : Blue or yellow

Clamping force : 6000kg

Clamping storke : 360mm

Number of Cavity : 1cativies

Max.container volume : 20ltr

Max.container diameter : 300mm

Max.container height : 430mm

Carriage unit : 19pcs

Keywords : 5 gallon blow molding machine

After-sales Service Provided : Engineers available to service machinery overseas

Warranty : 2 Years

Port : shanghai port

Contact Now

Newest Design Stretch 5 Gallon Jar PET Preform Blowing Molding Machine

Product Description
Feature:
(1) Energy Saving——low investment——easy to opreate and safety.
(2)With silencer——connecting rod ——articulated refueling devices.
(3)Cooling system with cold air cycle ——ensures same heat exposure of internal and external surface of the bottles.

Machine Specifications:

1.Semi-automatic, new condition

2. Cavity:1

3. Max.Container volume: 25 Liter

4. Mold customizing is available.

5. Theoretical capacity: 150 BPH

1.Our mold producing center produces exact mold ,adopts the high grade material to make.

2.The perform mold inside uses the imported steel, the surface’s brightness is very high and the service time is very long.

3.The design of equipment is logical, easily operation.

4.High level automation , using famous imported hydraulic , electrical, sealing parts, the trouble will be less .

5.No matter what the product ’s outside or inside, they can get the best guarantee, the good products rate can be above 99%.

Auxiliary machines and Introduction
Name Type Qty

Semi-auto blow molding machine

(one Blower Unit one infrared oven)

RM-100B

100BPH

1set
Air compressor 1.2m3/min 30kg 1set
Air filter 2.0m3/min 30kg 2sets
Air cold dryer 2.0m3/min 30kg 1set
5 gallon bottle mould 1 cavity 1 set

Air compressor Unit 1.2M3/30KG
Volume M3 1.6
Pressure Kg 30
Speed r/min 800
Power KW 18.5
Overall Dimension mm 2000*1100*1600
Weight kg 620

Refrigeration Air Dryer Unit 2.0M3/3.0Mpa
Flow capacity Nm3/min 2.0
W.P Mpa 3.0
Inlet Temp. ≤80
Dew point 23
Ambient Temp. ≤38
Power supply V/HZ 220/50
Compressor power Kw 0.75
Cold Medium R22
Overall Dimension mm 1050×650×1100
Weight Kg 120

Refining-Filter Unit 2.0M3/30Kg
Flow Capacity M3/Min 2
Max. work pressure Mpa 3.0
Inlet Temp. ≤50
Overall Dimension mm 750*350*350
Weight kg 20

Parameter

RM-5 gallon

Molding

Clamping force

kg

6000

Clamping stroke

mm

360

Stretching stroke

mm

450

Number of Cavity

Cavities

1

Container

Max.container volume

itr

20

Neck diameter range

mm

30-120

Max.container diameter

mm

300

Max.container height

mm

430

Carriage unit

pcs

19

THEORETICAL OUTPUT

bph

150

Electrical system

Total power

kw

39

Heating power

kw

38

Max.heating power

kw

20

Air system

Operating pressure

kg/cm2

7

Air consuming

Itr/min

1000

Blowing pressure

kg/cm2

25

Air consuming

Itr/min

1800

Air dryer

Operating pressure

kg/cm2

2-4

Temperature

10-12

Consuming

kcal/hr

2000

Flow rate

Itr/min

30

Water chiller

Operating pressure

kg/cm2

2-4

Temperature

30

Consuming

kcal/hr

10000

Flow rate

Itr/min

130

Machine

Machine size

mm

2350-750-1700

Machine weight

kg

600

Remarks

1. The actual output depends on the preform quality and bottle shape.

2. Specifications are subject to change without notice.

3. Please provide the stable ambient temperature.

Our Service

Customized service

Bottle service

We can design the bottle according your requirement ,especially the kinds of bottles, you can give us bottle type with picture or you can design it by yourself.

Machine service

1.Take running machine video

We can send you the video of the running machine , you can see more details in it.

2.Visit factory

You are always welcome to come to visit our factory.

We will make the arrangement to pick you up when you come .

3.Plan A-Z line

If you have a plan to take a factory , we can provide A-Z service by your equinment.

4. Quality Control

Every machine quality checked before packing.

We will try our best to help clients when problem occurred.

5.Spare parts
We provide two year warranty with spare parts free.

Packing & Shipping

Packing Method

3) By express: TNT, EMS, DHL, Fedex, UPS etc

The normal packages is wooden box. If enter container the packages is too tighter, we may use PE film to wrapping the machine. or according customer special request.It suits for long-distance transport, damp proof, rust proof, land way and seaway.

Coming Document:

1) Machine Quality Guarantee.

2) Complete set install & maintain instruction Book in English language.
